Architecture

Overview

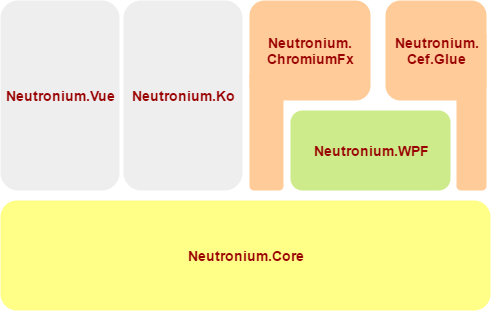

Neutronium presents a layered, pluggable architecture:

• Neutronium.Core provides core binding, synchronization and javascript manipulation being abstracted from real web browser implementation by an abstraction layer. This allows Neutronium to support various Web browser.

• Neutronium.WPF provides WPF user controls as well as any WPF dependent features.

• WebBrowserEngines:

  • Neutronium.WebBrowserEngine.ChromiumFx provides binding to ChromiumFx which the recommended web browser to run Neutronium.

  • Neutronium.WebBrowserEngine.CefGlue provides binding to CefGlue which the web browser mainly used for automated tests.

• JavascriptFrameworks:

  • Neutronium.JavascriptFrameworks.Vue provides Vue.js binding and any vue specific feature.

  • Neutronium.JavascriptFrameworks.knockout provides knockout.js binding and any vue specific feature.

• Neutronium.MVVMComponents provides additional abstraction to MVVM interfaces such as:

public interface IResultCommand
{
    Task<object> Execute(object argument);
}

public interface ISimpleCommand
{
    void Execute(object argument);
}

Neutonium.Core provides binding to Neutronium.MVVMComponents interfaces

See detailed specification here

Nuget packages

To simplify deployment Neutronium provide two main alternative packages:

• Neutronium.ChromiumFx.Vue
• Neutronium.ChromiumFx.Knockout

Both includes all dependencies needed to run a Neutronium project including ChromiumFx web browser binding and vue or knockout framework.
